Kitchen Design - Very Small Kitchen

[ramblingsonthego]

We are moving into a new property that needs a complete kitchen refit. It is small at 2.99 x 2.37 and a U shape.

I want to cram a lot into it and I am confusing myself more the more I look at it and attempt the design.

We have a tall fridge freezer that needs to be incorporated. We also want a dishwasher, washing machine, tumble dryer (I had a previous thread about stacking these) and obviously oven and hob.

I also want as much cupboard space as possible.

Sadly the space by the window nearest the door is not wide enough to house a fridge freezer or stacked washing machine and dryer it is about 70mm to narrow so it will encroach over the window so it can be only undercounter appliance or cupboard.

Has anyone got any amazing designs or thoughts on how I can achieve what I want or do I have to forgo the tumble dryer?

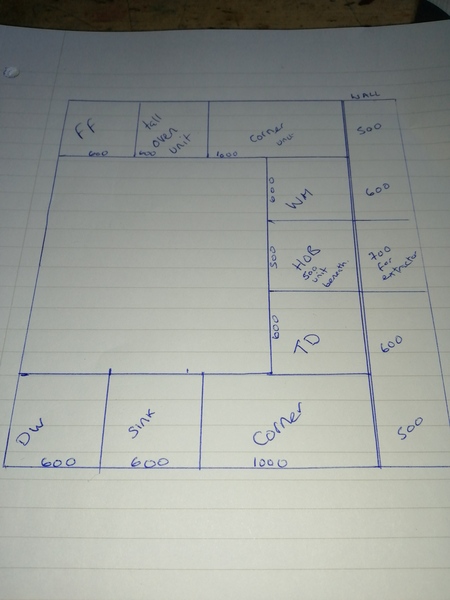

I have attached the floor plan so you can see the limitations we have.

I think this just about fits, but may be a few cm short irl. you could always have the sink angled on the corner to free up the 600 unit for the washing machine and swap that unit for another 500 and that will fit

I think I'd probably have a 300 or 400 pull out cupboard for spices and similar to allow bigger cupboard under the hob or have 1000 drawers under the hob. Or have the hob cornered too.

You have drawn the floor units too big. Where there are wall cabs above, they only project an extra 300mm
