DeVOL shaker doors

[radandroo2]

Hi there - I have seen a previous thread about DeVOL kitchens, which was so useful. I'm trying to replicate the shaker look. Does anyone know the exact width of the stile and rail on their doors (ie the width of the shaker bit!). Is it 600mm? thanks so much!

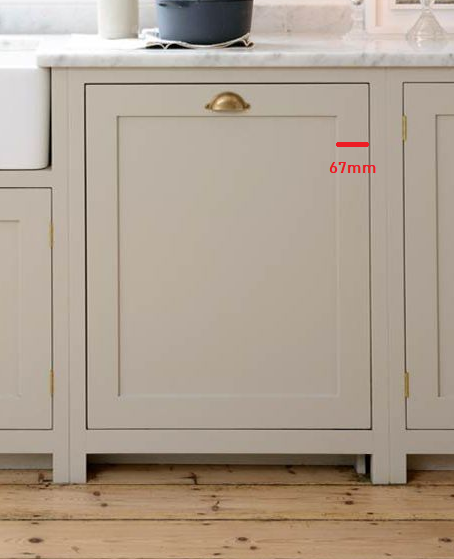

The bit marked in red in the attached photo is 67mm. Is that what you mean?

Wow - that's amazing! Thanks so much @mobear. Really kind of you to take the time to let me know. (I just realised I wrote 600mm instead of 60mm!)

No worries. If you need any other measurements let me know - we have a DeVOL kitchen.

Thanks so much!

Harvy Jone’s Arbor range is very similar. Suggest you compare quotes.

@mobear would you kindly be able to provide the measurements around the rails and stiles—the perimeter? thank you!

I’ll send them this evening when I’m back at home 😊

@mobear you're so kind! thank you so much

34mm either side, 34mm top, 24mm bottom (to the skirting, not to the floor). We have skirting round the bottom so I’m not sure what the measurement would be if you didn’t, but it looks like maybe 44mm to me. That said I think our frames are a little thicker than those in the above photo.

Sorry I forgot yesterday!

@mobear No worries! Thank you again for the detailed dimensions. Is your skirting 44mm?

No it’s 10cm.

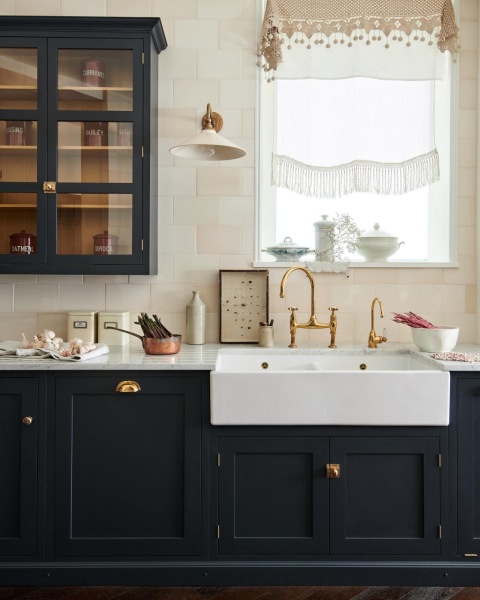

Ours is fitted like the attached so a colour matched skirting board which is 10cm high runs across the bottom.

@mobear Thank you so much for sharing your figures! Would you be willing to measure your drawer faces if you have any?

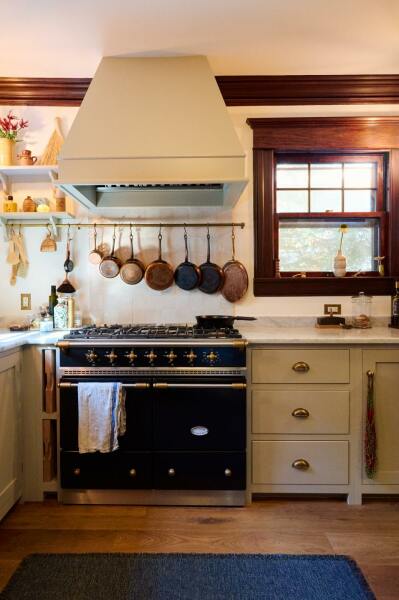

deVOL has a three-drawer cabinet with a small top drawer, and I think their height ratios look well balanced and beautiful but I am not sure how to re-create it without some help with numbers. Would you be willing to measure the faces on these for me?

Thank you so much for any help you can provide (even if you have a single top drawer, that figure would be helpful!) Thanks again!
