Beko washing machine plumbing

[Sammy2017]

Hi can someone please tell me how i connect a beko washing machine to under the sink as the drain hose on this machine is attached to the top back off the washer

Can you post a picture of what you mean?

Need a pic please

This is under my sink as u can see in the cabbet there ar 3 holes to middle and bottom the second pic is the bk iff the washing machine as u can see the drain hose comes out off the back off washing machine at the top which hole do i put it through to connect to sink ?

I think you need a connector to attach to the bit at the right hand side of your plumbing. Like this:

I dont know which hole is best though. (Have only just noticed that's what you're asking about)

Yeah i have 1 when i figure out how to connect washer i will but it on just got a cap on for now so a dont flood the place

Thats whst a cant figure out as theres 3 holes

anything in the instructions?

I don't know if the hose should be above the waste connector so I would probably use the top hole

The instructions are usless i was thinking if i put it through the middle hole would the water siphon out am not sure n a dont want to connect it untill i know for sure as a dont want horible smells inside my new washer

I have never seen a washing machine with the drain hose at the top its normally at the bottom

A drain hose connected to a sink u-bend should first go up at least 3 or 4 inches high before running down to the washing machine. It may need tying up with a cable tie to force it to stay in this position. (Found online - I would use the top hole i think)

Ano this applys to a washer that drains from the bottom as the ubend in sink is higher than the pump think the need to make instruction more clear

Find your local plumb trade center. Take the pics with you and show them.

I've always found them very helpful.

From what I can see you need the pointy bit that someone else has posted a picture of. It should be very easy to take of the cap on you ubend (put towels underneath, there will be some water) attache the pointy thing you get from the plumb trade centre and the washer hose attached to the pointy bit - your best off getting a metal ring that screws tight to secure / tighten it. Sorry I dont know the name of it.

Top hole. Higher than the drum, and higher than the sink trap. To prevent smelly water going back into your machine.

Yeah ave got the thing that needs to be on the sink thing a will try putting it through the too hole tmoro fingers crossed its right thanks

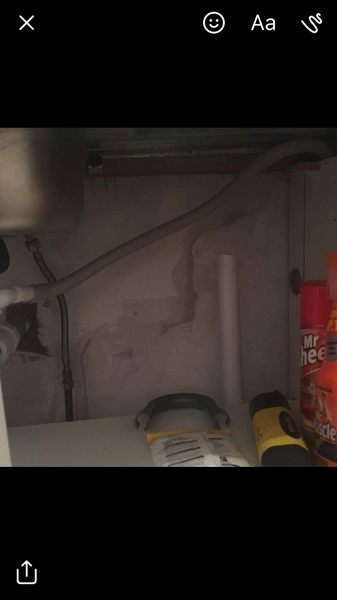

This is the way my old one connected but the standpipe in the pic is no longer there

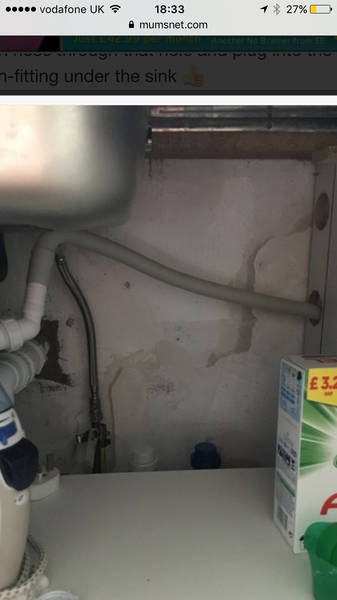

This is what i ended up doing is this ok do u think

no, it should go higher.

When the sink is full to the brim, the water level will be higher than the highest part of the loop in the hose, so water will run down the hose and into your washer. Sometimes this water will contain tealeaves, peas, bacon fat etc.

So as described earlier, you should loop the hose so it goes right up to the underside of the worktop,

Piglet could you show a pic of what you mean please? Think I understand ish.

I'm watching thread with interest, plumbing my kitchen in next week

Sorry sammy to hijack

Do u mean it just needs part of the pipe securing higher to stop a flow of kitchen sink water flowing into it??

any part of the hose will do. It is usual to loop it up.

like in your pic Mon 07-Aug-17 20:12:53

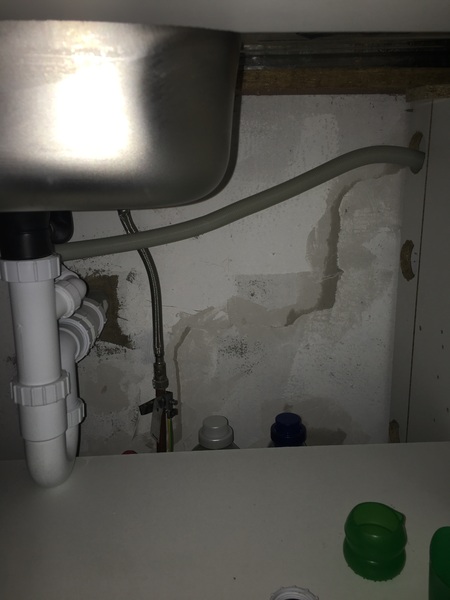

Like this ?

The other picture showed it higher than the top hole i.e. just under the worktop. Can it go like that again?
