Beko washing machine plumbing

[Sammy2017]

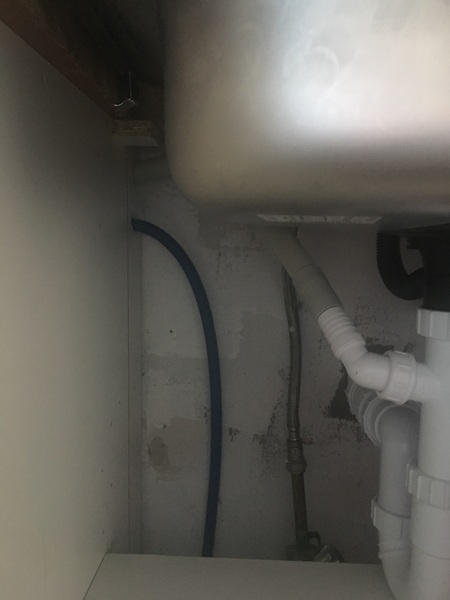

Hi can someone please tell me how i connect a beko washing machine to under the sink as the drain hose on this machine is attached to the top back off the washer

If i put it above the unit like my old washer was the drain hose comes out the top bk off washing machine no loop down just strait connection down to sink i will try again tmoro and i will post more pictures off whst i mean .. thanks i apresiate u help ...

If i put it above the unit like my old washer was the drain hose comes out the top bk off washing machine no loop down just strait connection down to sink

that's OK, as long as it goes high.

if you can fix it to the underside of the worktop with tape or a bit of string, that will be even better

Like this which way should that white thing on the sink be pointing like the first or last photo thanks

upwards. the second photo looks better.

"spigot"

Ave had 2 washes but when it was draining water was coming up the sink i think i will have to install a standpipe will this be better as shown in photo but with ubend on it

A large capacity standpipe is very good. You bend the end of the waste hose and push it about 100mm-150mm down (never all the way to the bottom)

the top of the standpipe needs to be quite high

the assembly is available readymade.

it doesn't really matter if foam rises into the empty sink though, it's quite common.

Hopefully this is me last post ave had to move the washer to the other size is this better many thanks

looks OK provided the highest point of the hose is higher than the water level in the sink when full.

Which way do i point tgat white thing

preferably turned to point somewhat upwards. Otherwise water may lie in it.
