Looking for Advice on Reconfiguring Ground Floor – Kitchen, Dining Room, Bathroom, and Bedroom Changes

[OneFairLion]

Hi all,
I’m hoping to get some advice on reconfiguring our ground floor. We live in a semi-detached house built in the 1880s, and we’re looking to renovate with a goal of improving the layout and increasing the property’s value for when we sell in a few years.

Current Layout:

• The kitchen is at the rear, and the dining room is in the middle of the house.
• The bathroom is upstairs, and we’re considering possible swaps for both the upstairs and downstairs layouts, including swapping the kitchen and dining room.

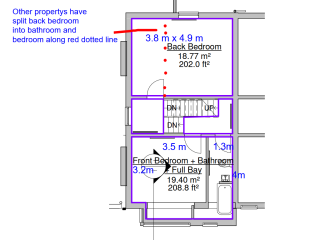

• The two rooms upstairs (top bedroom and back bedroom) are often split in nearby houses into separate spaces (e.g., making the back bedroom a bathroom and keeping the top room as a bedroom).

What we’d like advice on:

• Feasibility: Are there any major drawbacks or issues with swapping the kitchen and dining room, or changing the top room into two smaller rooms? We’re also considering swapping the back bedroom and adding a downstairs WC or utility room.
• Storage: The kitchen at the front will be bigger, but how can we ensure we have enough storage while making the space functional? Would a downstairs WC or utility room be practical in this layout?
• Style & Functionality: We’re not concerned about keeping the character of the house. Any ideas on how to modernise the kitchen, dining area, and bathrooms to maximise the space and functionality?
• Value for money: Will these reconfigurations make a noticeable difference to the overall feel of the space or resale value?

We’re open to all ideas and suggestions, so any input would be hugely appreciated!
Thanks in advance!

Is there a limit you want to spend? Have you considered adding a small extension to do the infill bit on the ground floor? That's very common around us (London) and so allows a much bigger kitchen at the rear and still keeping a nice sized dining room (often becoming a playroom for families with small DC).

I don't think any of those changes would add value and may decrease value.

If you can afford to then I would do as PP suggested and get a side return extension and go out a bit at the back too if possible to give a bigger kitchen. Which is what almost everyone I know has done to their victorian terraced houses.

So you are planning to reduce the number of bedrooms from 3 to 4 and make the staircase open to the living room and add a second bathroom on the 1st floor?
Reducing bedrooms will reduce the house price.
Reducing a bedroom size will make the house less sellable.
If you want to add a shower room or loo, it should be on the ground floor or top floor. Could the "space under landing" be a loo?
Renovations are expensive at the moment and pretty much anything structural won't get you any money back unless you aren't planning to stay in the property for 10 or more years.

Just decorate it nicely and maybe add an extra loo.

Thanks! We’re trying to keep costs fairly low, so not planning any extensions — the house already has a rear kitchen extension and a double bay front extension, so we’re looking at how best to work with the existing footprint.
Both the kitchen and bathroom are over 30 years old and need replacing regardless. The upstairs bathroom is also very long and narrow, which isn’t practical with a toddler. We’ll be adding a downstairs WC, so we’re mainly looking for advice on the most sensible layout and configuration — especially how to modernise the space and make it more functional without overspending.

Thanks for the reply! Just to clarify — we’re not reducing the number of bedrooms. It’s currently a 3-bed and would stay as a 3-bed. In fact, the original layout of these houses had the top (loft) bedroom split into two smaller rooms, and some nearby houses still follow that setup — we’re just exploring layout options based on that.
We’re also not planning to open the staircase into the living room — that’s already done. The line of the original brickwork was just marked on the plan to show where it used to be.
The main thing we’re looking at is how to improve the flow and functionality. The upstairs bathroom is very narrow and long — not great with a toddler — and both the kitchen and bathroom are 30+ years old and need replacing anyway. So we’re looking at how to reconfigure things sensibly while updating them, and we will be adding a downstairs WC as part of that.
We’re mindful of cost and resale, so definitely not over-investing — just hoping to make the layout work better for modern living.

Is there space for a bathroom in the front loft? Or is the ceiling too low? If there is, that means there could be a master bed suite in the loft then 2 decent bedrooms and family bathroom on the 1st floor.

will you do any kind of extension at the back?

I’ll start with the warning that I’m not British and probably have different tastes than the average UK house buyer.
If this was my home I’d like the following changes.

Make the kitchen into a bathroom/utility. Toilet, shower, washer, dryer and loads of floor to ceiling inbuilt storage.

Make the dining room into a kitchen and that little under stairs cupboard into a pantry. Maybe with hanging pots and pans inside. I’d make the kitchen Scandinavian style with lower cupboards but thin open shelves on top, so the room looks less crowded. Hopefully, the pantry and utility room would make up for storage. An extendable dining table and for the extra chairs (when having people over) I’d choose nice quality folding chairs stored in the loft or utility.
I really like thin open shelves along the top of walls for book storage because it holds surprisingly a lot but still leaves floor space. Maybe I’d do something like that in hallways.

Upstairs I’d move the Front bedroom/bathroom wall to the left making the front room smaller, then shorten the bathroom, increasing the landing. Turn the front room door 90degrees so access now is from the new extended area.

If I wanted to add another bedroom, I’d split the back room into the bathroom/bedroom combo like other properties and make the newly resized old bathroom into a child’s bedroom. The little awkward nook by the window would be a desk. A mezzanine bed along the wall with front bedroom and wardrobe underneath the bed.

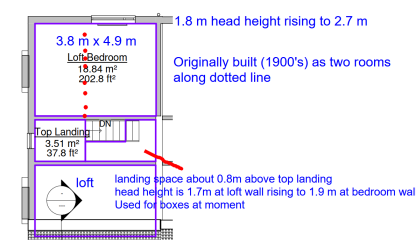

Thanks! Unfortunately, the front loft space doesn’t really have usable head height — it’s only about 3ft at best, sloping to nothing at the eaves. To get even a small amount of space up there, we’d have to lower the front bedroom ceiling to around 6ft, which just isn’t practical.
There’s already a rear kitchen extension and a double bay at the front, so we’re not planning any further extensions — just trying to reconfigure what’s already here.
The current upstairs bathroom is the original layout — long and narrow, which doesn’t work very well with a toddler and isn’t ideal as a main family bathroom. Interestingly, one house down the road has squeezed a corner bath and WC into the top landing space, though I’m not sure how usable or practical that really is.

Your original post is really confusing. Did you get chat gpt to help you write it by any chance?

So basically you want to know what to do to improve the flow and functionality of the house and the images are what is currently there.

I would move in and try the current bathroom and kitchen out before you commit to changing either. It will help you work out what you hate and what you love.

I have seen similar houses where they have knocked though from the kitchen to the diner and run units out a bit further than where the original kitchen is, which can be good. Switching the kitchen and dining room will be pricey (more than the money you will get back selling) and you will lose a reception room which could affect price but then knocking though might do that too I guess.
Small kitchen issue could also be slightly resolved by getting a nice sideboard and keeping all your crockery and cutlery in that in the dining room so the kitchen is just for cooking stuff.

You can make the current bathroom a bit bigger by moving the dogleg in the wall between the bedrooms and bathroom higher up but it can't go to the top because there won't be anywhere for the door and also you risk ending up with a room which isn't large enough for a double bed.

i think one of the main issues with swapping the kitchen and dining room will be the gas/water/electricity supplies and waste water outlets. If you have a boiler of some sort in the kitchen I think it would look very odd in a dining room. Patio doors in the ‘new’ dining room would make it feel more spacious.

I’d be all for a downstairs toilet under the stairs, but would you want it opening directly into the living room?

If you split the back bedroom into a bedroom and bathroom, would the new bathroom be much wider than the one now?

Thanks for your reply. Just to clarify, we’ve already moved in, which is why I’m asking for advice on the layout.

The current dining room is not only used as a dining space, but it’s also the throughfare to the old patio doors and kitchen. The kitchen is quite far from the living room, and the split level difference between the front and back of the house only makes the distance feel worse.

There’s already a large opening (around 2m x 2.2m?) between the kitchen and dining room from the previous extension. The kitchen is in need of replacement as there are no proper fitted units, and all the services (boiler, water, electrics, etc.) are closer to the stairs than the extension, so it seems more practical to make changes in that area.

Regarding losing a reception room, I’m not sure how that would apply in our case. If we move the kitchen into the current dining room, we would still have the living room as a reception, so not losing a space there.

We could look into moving part of the partition wall between the front bedroom and the bathroom to widen it — possibly the middle 2 meters of the current bathroom. However, the original part of the house has a supporting wall only about 800mm from the end of the bathroom, so shifting it would likely involve a fair amount of structural work, as it supports the wall plate. We did think of trying to shoe in a bath into a indent into the front bedroom by moving that partition.

Hope this clears things up a bit, and I really appreciate the input!

Thanks for your thoughts!

Actually, the services are already closer to the staircase/landing, which is why moving the kitchen would make sense.

The hot water from the boiler takes a long time to reach the current kitchen due to the distance, so placing the sink under a window where the current patio doors are would make it much more practical and also closer to the drainage and manhole.

For the downstairs toilet, we’re thinking of placing it under the stairs, accessed through the old bricked-up doorway (indicated in red). This would be at the same floor level as the back of the house and could be part of the new kitchen/pantry layout that GooseClues mentioned. That way, it would be accessible without opening directly into the living room.

If we split the back bedroom, we’d aim to create a bathroom around 1.8m x 3m and a bedroom about 3m x 3.8m. This would give us more space than the current 1.3m x 4m bathroom, making it much more practical.

Just not sure about the size of a vestibule and access or if we’d look at two doors off the landing.

Appreciate all the input — it’s really helping to get use heading in the right direction after some time

Ah, sorry, I missed the bricked up doorway. That would make more sense but would you then have a toilet opening directly into the kitchen? I’d rather make that space into a utility room.
It also makes sense moving the kitchen due to the utilities but could you completely remove the walls between the kitchen and dining room, rejig where the appliances are and create more of an open kitchen diner space?

If you move the bathroom to the back of the house would you it be better for getting hot water and would you still be able to join into the stack pipe easily?

Hi! Yes, we were thinking the same about avoiding a toilet directly off the kitchen. The idea is to tuck it under the stairs with a pocket door, so you'd go through a small utility or pantry area first—no direct line of sight from the kitchen, and effectively two doors separating it. I’ll try to sketch that idea out when I get chance.

There’s already a 1.6 x 2.2m opening between the current kitchen and dining area, but you’re right—removing the remaining 800mm or so of brickwork would really open things up. It would likely need a bigger steel and possibly columns at either end, as there are already steels above both the old patio doors and the kitchen opening, so that middle section is doing a fair bit of work structurally.

Regarding the bathroom move: interesting point about the hot water. The soil stack is actually on the gable wall nearer the front of the house, so the current pipework already snakes around quite a bit. In theory, moving the bathroom to the back might simplify things—or at least not make it any more complicated than it already is!

Hi! Yes, we were thinking the same about avoiding a toilet directly off the kitchen. The idea is to tuck it under the stairs with a pocket door, so you'd go through a small utility or pantry area first—no direct line of sight from the kitchen, and effectively two doors separating it. I’ll try to sketch that idea out when I get chance.

You used to have to have two doors between a toilet and a kitchen to comply with building regs, but this has changed and you can have a toilet off a kitchen but you have to have a sink in with the toilet. You also need to think about ventilation.

There’s already a 1.6 x 2.2m opening between the current kitchen and dining area, but you’re right—removing the remaining 800mm or so of brickwork would really open things up. It would likely need a bigger steel and possibly columns at either end, as there are already steels above both the old patio doors and the kitchen opening, so that middle section is doing a fair bit of work structurally.

It sounds as though it will start getting expensive to have to install new steelwork. Is the gap central so you have equal amounts of sticky-out wall (its a technical term!) on each side? I don’t know if your plans are to scale, but it looks as though there is less on the side opposite the sink. If this was less than the depth of a kitchen cabinet, could you just incorporate it into a run of cabinets? Would that leave you enough space between the sticky-out walls?

I see your point about the two reception rooms, please ignore my earlier thing about losing a reception room as I don't think it's relevant for this house.

The space where the kitchen currently is, isn't big enough to be a dining room surely? In which case, would you not end up with a tiny room that never gets used?

By all means move the kitchen and the bathroom if it suits you better but you won't make the money back.
Might make it quicker to sell though?

Thanks for your comments, that's why we're trying to get an opinions from people other than family. We are still mulling over the layout and out of interest, when you say the kitchen extension seems too small for a dining room, is that based on the dimensions (2.5 m x 4.7 m)?

The houses nearby don’t have any extension ( original layout) and just use the current dining room (which is about 4.8 m x 3.8 m) as their kitchen/diner. So I wondered whether the kitchen there and using the rear extension as a family snug might actually be more in line with how people want to live now? My wife wants to use it as a play room.

Also, if we’re replacing the kitchen anyway, does moving it risk losing value you think or maybe just change the type of buyer it appeals to?

Thanks

I think it could be tricky to fit a dining table on a room that's only 2.5m wide and still have enough clearance to get round the table. But I guess it could be ok. Especially if it's at one end. Might the new kitchen end up being a bit of a corridor and will that be a problem?

I think if you had the current kitchen as a space which could be closed off and used as a possible home office it might appeal more to how people live now maybe?

Also if you like cooking, the ideal is to have a u shaped kitchen as you get loads of worktop and minimal travel distance between sink, hobs and fridge. So would you have an island in the new kitchen to mirror this? And would it be mobile or fixed? (I hate islands so might not be the best person to ask about islands!)

I think with smaller houses the more flexible and multipurpose spaces are, the better.

Do you eat at a table? What do you want to use your space for?

The current dining room is a bit difficult as it has so many doors off of it. Would moving the back door into the current kitchen maybe help with creating more wall space in the current dining room and improving the flow in there?
