Toilet leaking question!

8 replies

Iggi999 · 03/01/2016 11:19

Hello
Toilet has been running small amounts of water permanently into the bowl for a few weeks now. I've tried looking for YouTube videos but they are all about modern push button ones, ours has a lever on the side of the toilet and I think they are different inside.
If I open up the cistern and hold the ballcock up the dripping stops. But I can't see how to alter uthis permanently. Any ideas greatly appreciated - even what to call the type of toilet.

OP posts:

Original poster

Iggi999 · 03/01/2016 11:31

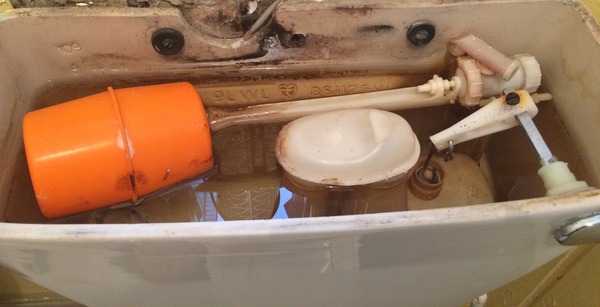

Here is the cistern

OP posts:

ModenaMan · 03/01/2016 11:40

Sounds like the valve is not shutting off when the ball has risen. Is there a knurled ring at the other end of the ball. There will be a little plunger which pushes against a rubber seal. Either the seal has worn or could be some debris stopping it from fully closing.

caroldecker · 03/01/2016 11:42

At the end of the ballcock lever is a flap, which opens and closes the ater supply. The ballcock is not rising enough to close the flap before the water reaches the overflow level.
You should be able to adjust the ballcock to rise higher, thus closing the flap earlier.

ModenaMan · 03/01/2016 11:47

Have a Google for side entry cistern valve filler. There is a YouTube video listed which might help

Original poster

Iggi999 · 03/01/2016 13:01

Thank you both
I will report on my success

OP posts:

PigletJohn · 04/01/2016 01:02

you see the orange float, with the long white arm? The little screw you see on the top of that arm presses on the valve. Screw it out so that it projects further to the right and presses on the valve earlier (flush the WC and hold the float down to take the pressure off it first). There will be a nylon locknut. Loosen it to adjust and tighten afterwards.

If that doesn't work get a new valve, it is quicker than repairing the old one. It looks like you have a bottom-entry valve. You will have to turn off the water supply to the cistern before changing it. People who blush to say "ball cock" call it a float valve. The modern Fluidmaster is better and quieter.

Original poster

Iggi999 · 04/01/2016 22:52

Well, it worked!!!!
Adjusted the lever thing and it's not leaking in any more. I am pleased that it's stopped but more so that I fixed it myself (well, with a lot of help from mumsnet!) to the point that I keep going in to have a look
Thank you all so much for your responses

OP posts:

ModenaMan · 05/01/2016 10:04

At ball cock watch, glad it is sorted.
